Basic Info.
Model NO.
CUT-45K
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Automatic Grade
Automatic, Manual, Semi-Automatic
Power Source
Electric
Cutting Mode
Plasma Cutting
No-Load Voltage
60V
Input Voltage
220V Single Phase
Cutting Thickness
1-10mm
After-Sales Service Provided
After-Sales Staff
Protection Grade
IP21s
Color
Black
Application
Plasma Cutter
Air Flow Pressure
2.5bar / 35psi
Transport Package
Honeycomb Box
Specification
64*32*48
Trademark
FENGBAO
Origin
China
HS Code
8515390000
Production Capacity
50000pieces/Year
Product Description
SEARCHING FOR A SMALL PORTABLE AIR PLASMA CUTTING MACHINE ?

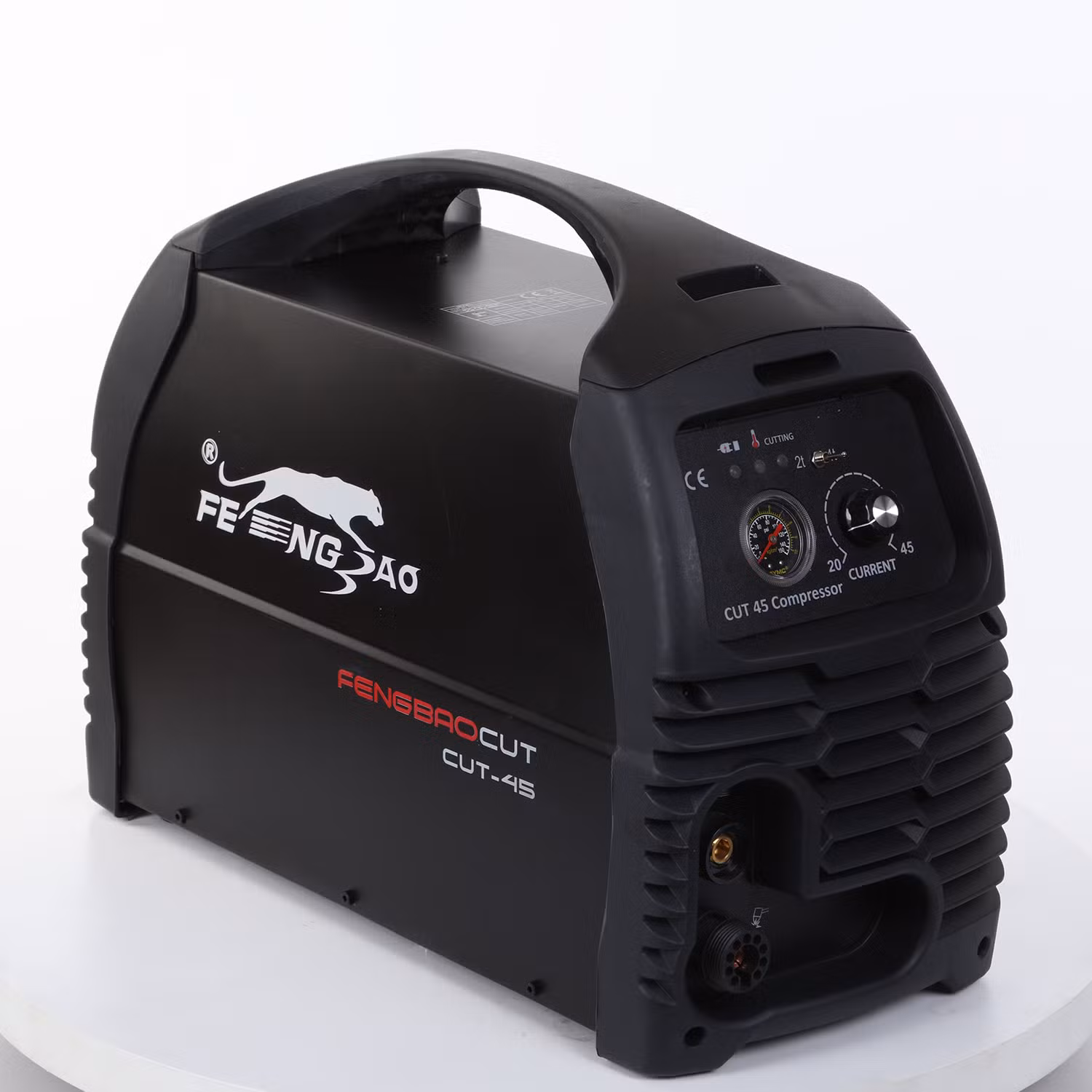

The DECAPOWER CUT-45 KOMRESSOR is an inverter-based Plasma cutting machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality Plasma Cutter. The CUT-45 KOMPRESSOR produces a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc . The CUT-45 KOMPRESSOR is equipped with a high quality S45 Plasma torch with Euro connection,developed specifically to enhance and improve the cut quality of the CUT machine. Connection of the S45 Plasma torch provides effortless starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips.
The CUT-45 KOMPRESSOR is an exceptional machine that is suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services.
The CUT-45 KOMPRESSOR is packaged with a tough S45 Plasma torch, earth lead and air regulator. The CUT-45 gives you the best of both worlds great portability, with the power to get the job done.
Built to our specification and manufactured in compliance to AS/NZS 60974-1
The CUT-45 KOMPRESSOR is an exceptional machine that is suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services.
The CUT-45 KOMPRESSOR is packaged with a tough S45 Plasma torch, earth lead and air regulator. The CUT-45 gives you the best of both worlds great portability, with the power to get the job done.
Built to our specification and manufactured in compliance to AS/NZS 60974-1
A CUT ABOVE THE REST:

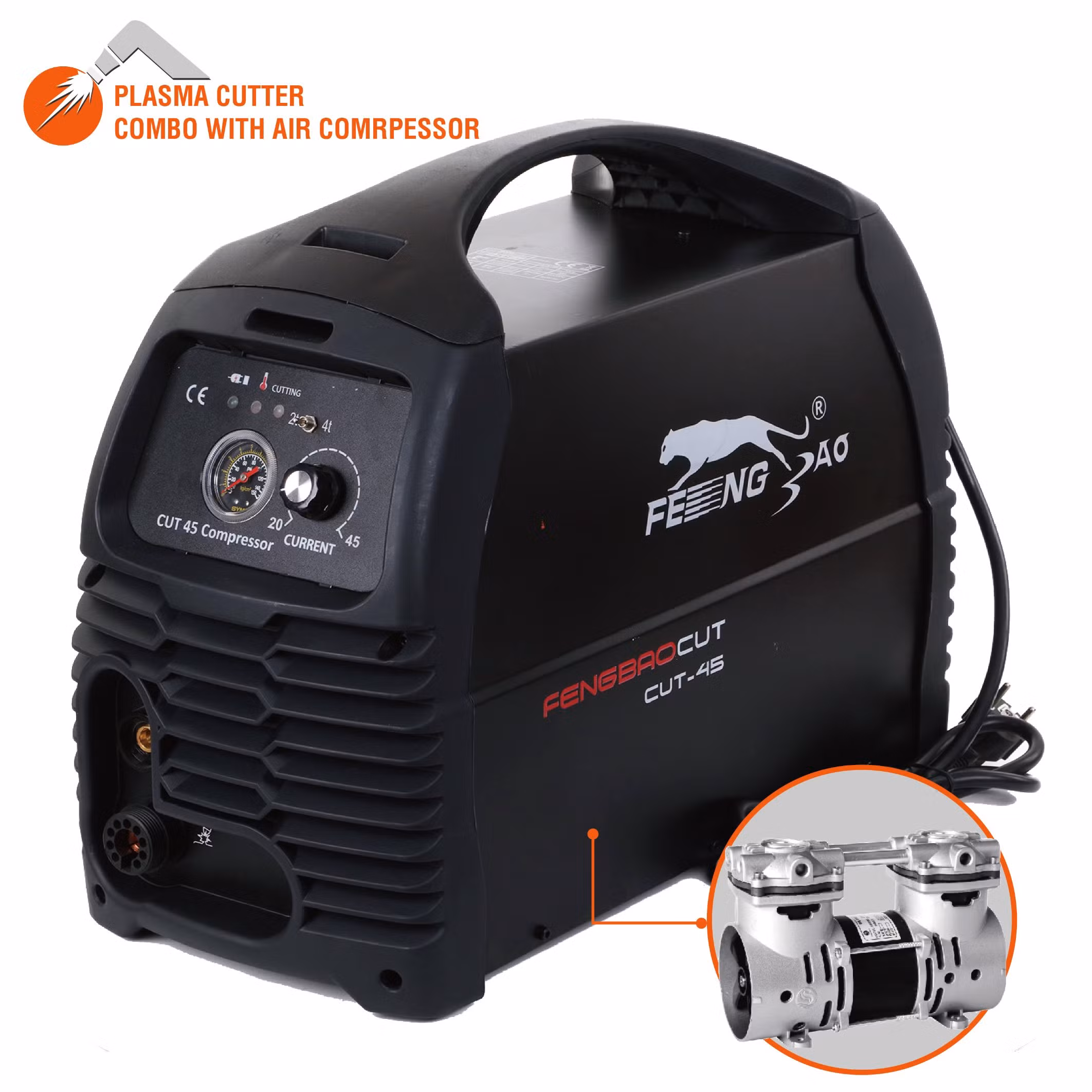

- CUT-45 KOMPRESSOR is a single phase inverter Plasma Cutter combo with small air compressor pump capable of clean cutting 8mm mild steel and evering 10mm mild steel.
- The machine is light weight and extremely portable and is suited to light to medium industrial work.
- This powerful machine is perfect for site work as well as panel and fabrication work.
- The machine comes standard with 4 metre torch making it extremely versatile for making cuts away from the machine itself.
- The torch can be used in either 2T or 4T modes making it more comfortable for longer cuts.
- Optional extras for the machine include an air filter unit to maintain clean and dry air as well as a circle cutting kit with roller guide.
| Product Model: | CUT-45 KOMPRESSOR | |||
| Product Description: | IGBT INVERTER PILOT AIR PLASMA CUTTING MACHINE | |||
| Rated Input Voltage: | 1phase, 230V +/- 15% | 1phase, 120V/230V +/- 15% | ||
| Rated Input Power: | 5.5Kw | |||
| Frequency: | 50/60Hz | |||
| Output Current: | 10-40A | 10-30A | ||
| Rated Duty Cycle: | 40% | |||
| Plasma ARC Start: | PILOT - LF | |||
| Air Flow Pressure: | 2.5 Bar (35psi) | |||
| Air Flow Rate: | 6.7 CFM | |||
| Cutting Thickness: | Max. 16mm | |||
| Class of Insulation: | F | |||
| Protection Level: | IP21 | |||
| Power Plug: | 20A | |||
| Size & Weight: | Product Dimension | 570x280x450mm | ||
| Poduct Weight | 14Kg | |||
| Package Dimension | 620x320x480mm | |||
| Package Weight | 18Kg | |||
| Accessories: | 1x S45 CUT TORCH with 3m cable | |||
| 1x 300A Ground Clamp with 2m cable | ||||
| 1x CUT Torch kit | ||||
| 1x Manual Book | ||||
