Basic Info.
Model NO.

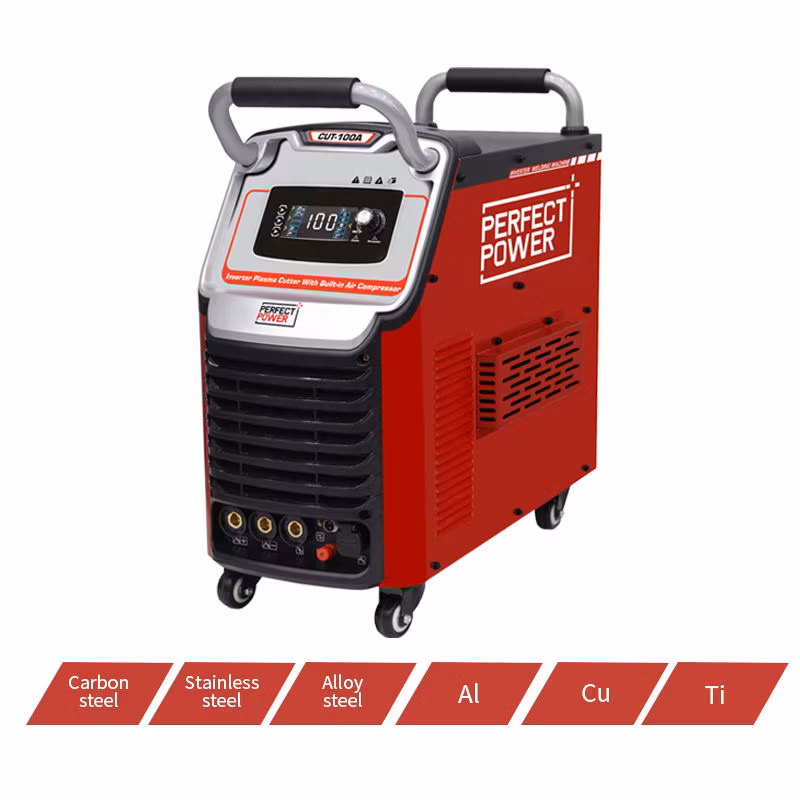

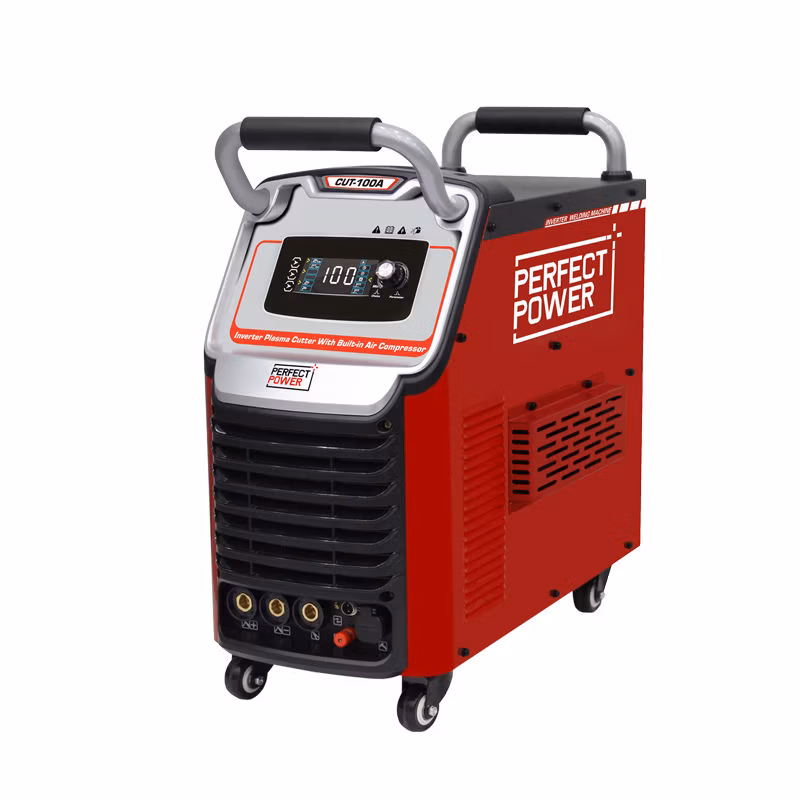

CUT-100A Cutting Machine
After-sales Service
1 Year
Warranty
1 Year
Customized
Customized
Layout
Coaxial
Cutting Material
Carbon Steel, Iron, Metal Alloy, Stainless Steel
Power Source
Plasma Cutter
Cutting Mode
Plasma Cutting
Max. Load Power Capacity(kVA)
19
Phase
3pH
Open Circuit Voltage DC(V)
295
Customized Support
OEM, ODM
Weight
65mm
Rated Current Input(a)
28.5
Rated Output Current(a)/Voltage(V)
100/120
Power Input Frequency(Hz)
50/60
Dimension (L x W x H)
740*410*710mm
Max.Cutting Thickness(mm)
40
IP Grade
IP21s
Max. Cutting Current (a)
100
Rated Duty Cycle(%)
60
Rated Output Current
100A
Transport Package
a Set of Welding Machine
Trademark
PERFECT POWER
Origin
Guangdong, China
Product Description
| Model No. | CUT-100A |
| Power input AC(V) | 3pH 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 19 |
| Rated current input(A) | 28.5 |
| Rated output current(A)/voltage(V) | 100/120 |
| Max. cutting current (A) | 100 |
| Open circuit voltage DC(V) | 295 |
| Rated duty cycle(%) | 60% |
| Max.cutting thickness(mm) | 40 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 740*405*710 |
| (kg) | 62/65 |
