Chengdu Xinwei is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
Owning a R&D team of more than 20 engineers. and a 18000 sq.m factory , which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a technical team in your country)

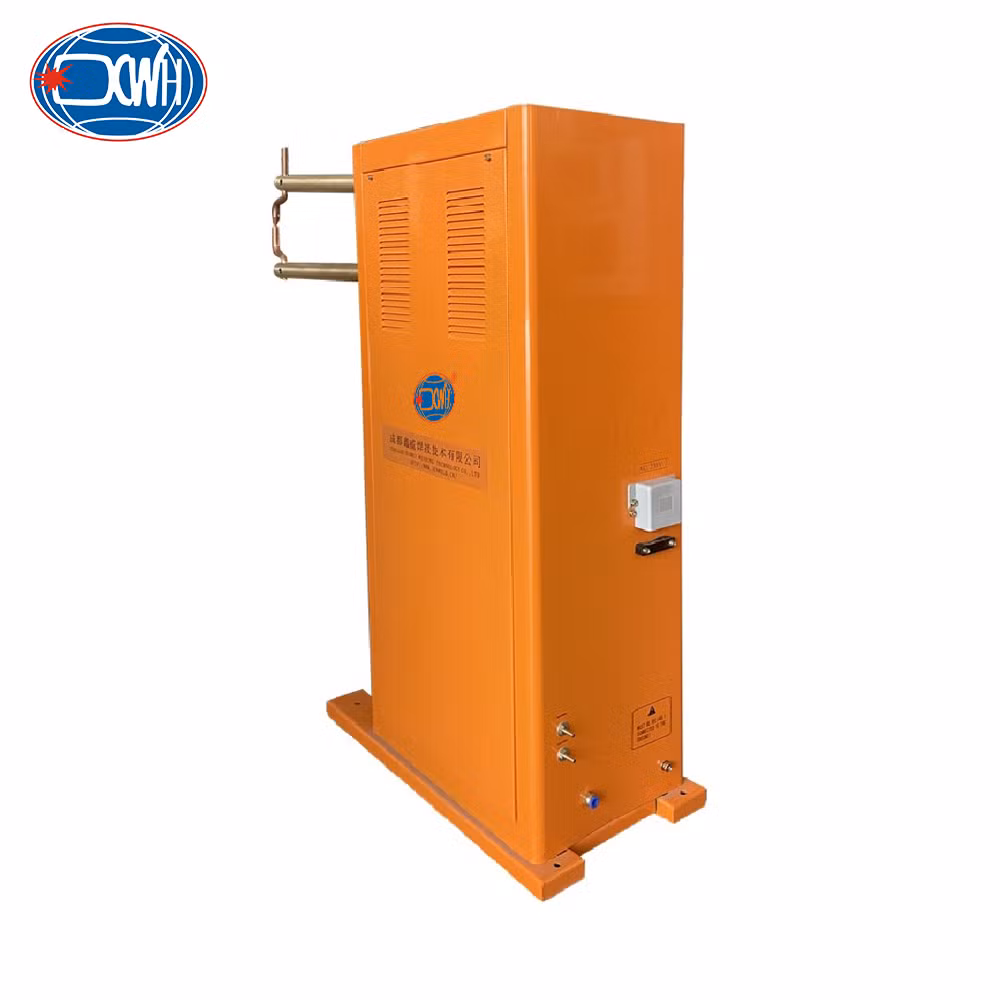

Pneumatic Spot Welding Machine are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
| Model Item | DN3-35 | DN3-25 | DN3-16 |
| Rated Power | 35KVA | 25KVA | 16KVA |
| Voltage | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A |
| Rated Duty Cycle | 10% | 10% | 10% |
| Secondary Unload Voltage | 4.2V | 2.3~3.55V | 1.98~3.01V |
| Adjustment Rated | 1 | 4 | 4 |
| Models of the controller | TCW-32H | TCW-32H | TCW-32H |
| Arm Length | 400mm | 400mm | 400mm |
| 280mm | 280mm | 280mm | |
| Max. Strength at Electrodes | 1400N | 1400N | 860N |
| Max. Welding Capacity | 3.5+3.5mm | 2.5+2.5mm | 2+2mm |
| Cooling | Main Transformer: Air Electrode: Water | ||
1. Microcomputer circuit control with high accuracy.
2. Fine adjustment of welding current 20%-100%.
3. The control system has power factor adaptive function,and the pressure between electrodes is adjustable andconstant.
4. Widely used in aviation, construction, machinery, metalproducts, electrical switches and other industries.
5. Being used for welding of low carbon steel plate, wire,stainless steel plate and other materials.
Wining by quality, precision to thrive; Dedicated, so Professional. More details, please contact!
